Drilling Equipment
We design, manufacture, install, commission, and provide aftermarket services for industry leading drilling equipment.
What we provide
-
Mechanical Drilling Equipment
-
Electrical Drilling Equipment
-
Rig Controls
Mechanical Drilling Equipment
-

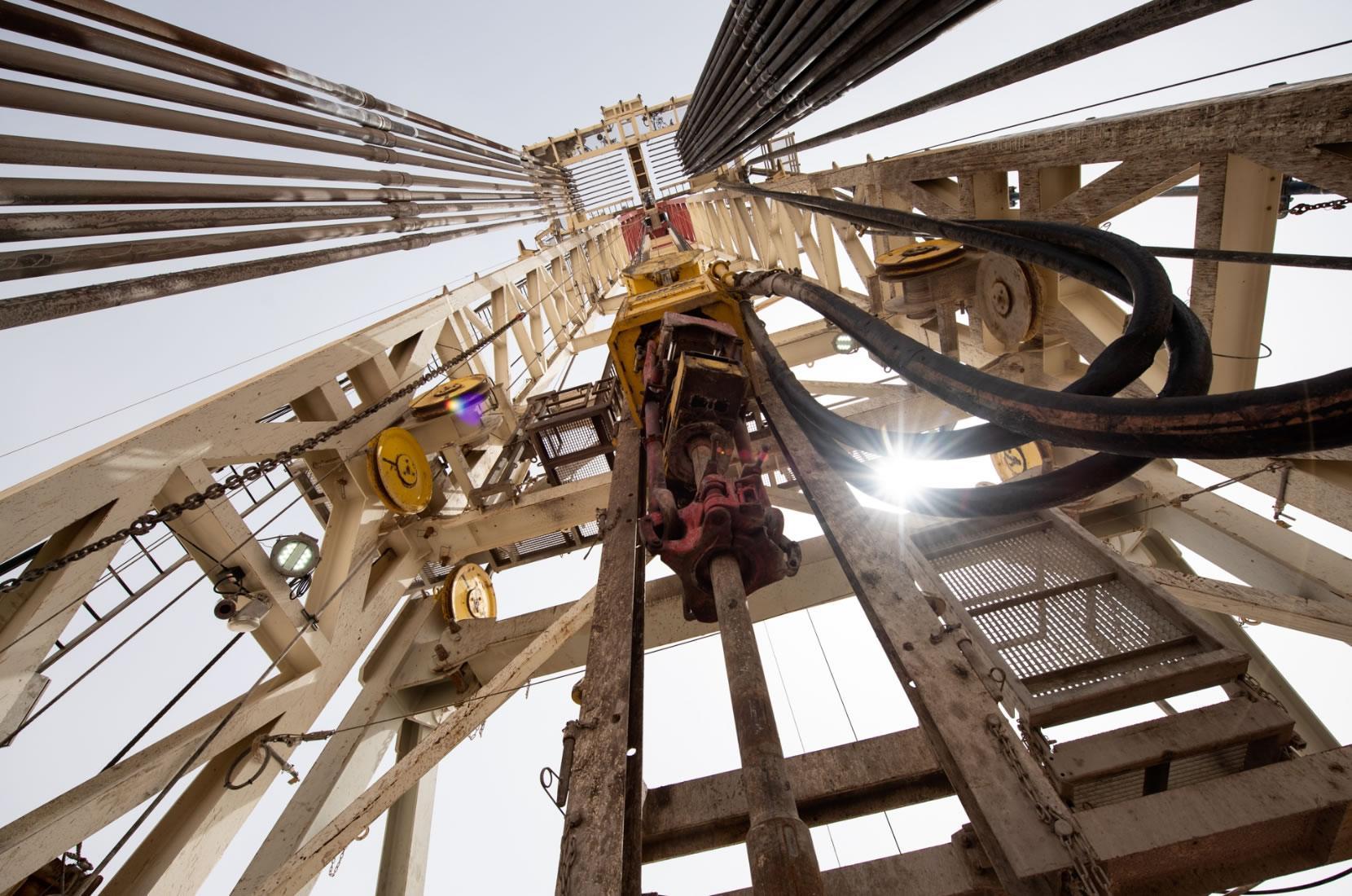

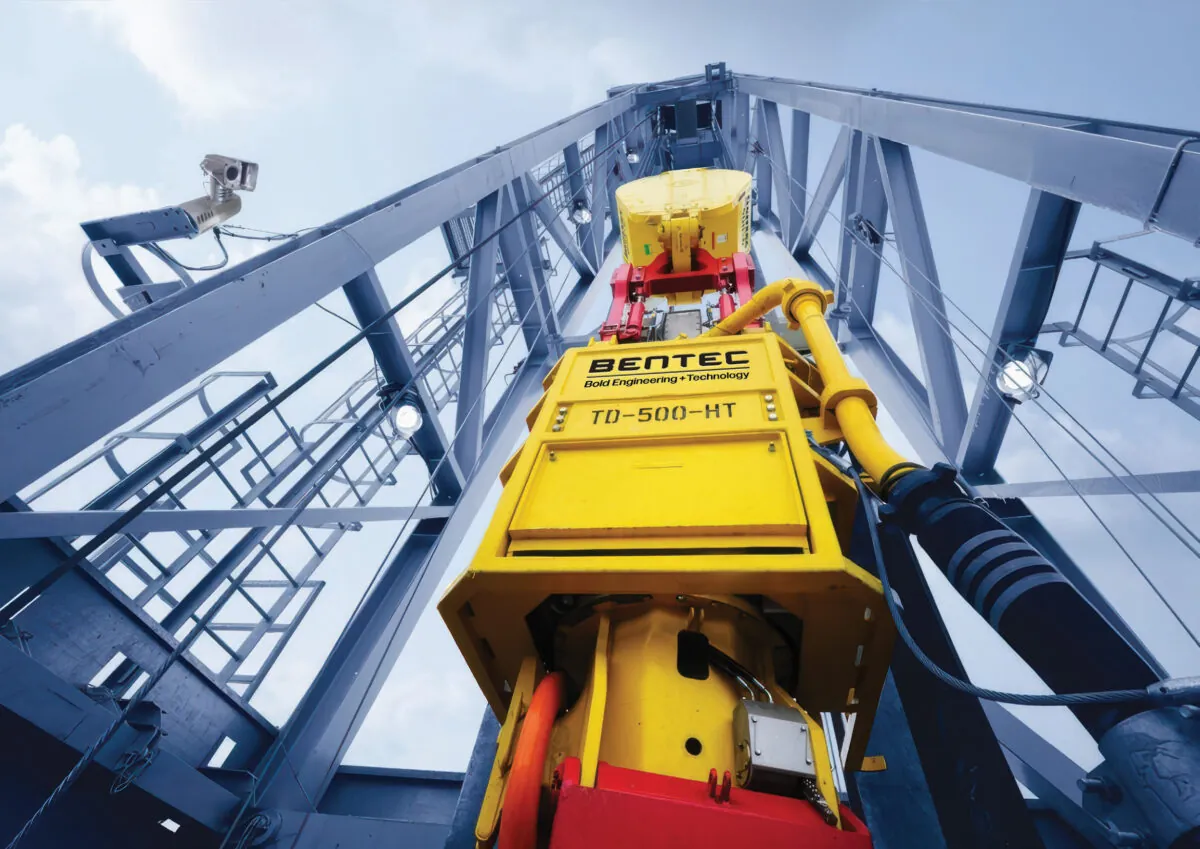

Top Drives
Proven superior operational performance and reliability.
Designed for onshore and offshore rigs, BENTEC Top Drives are market leading with proven best in field performance – providing up to 30% more continuous torque capacity.
Product Model Hoisting Capacity Horsepower Max. Cont. Torque TD-200-HT 200 tons 450 hp 23.600 ft-lbs TD-250-C 250 tons 672 hp 35.200 ft-lbs TD-275-HT 275 tons 672 hp 35.200 ft-lbs TD-350-HT 350 tons 1.030 hp 46.500 ft-lbs TD-500-XT 500 tons 1.140 hp 52.000 ft-lbs TD-750-HT 750 tons 1.609 hp 73.760 ft-lbs TD-750-XT 750 tons 1.710 hp 78.000 ft-lbs TD-750-UXT 750 tons 2.000 hp 92.195 ft-lbs -

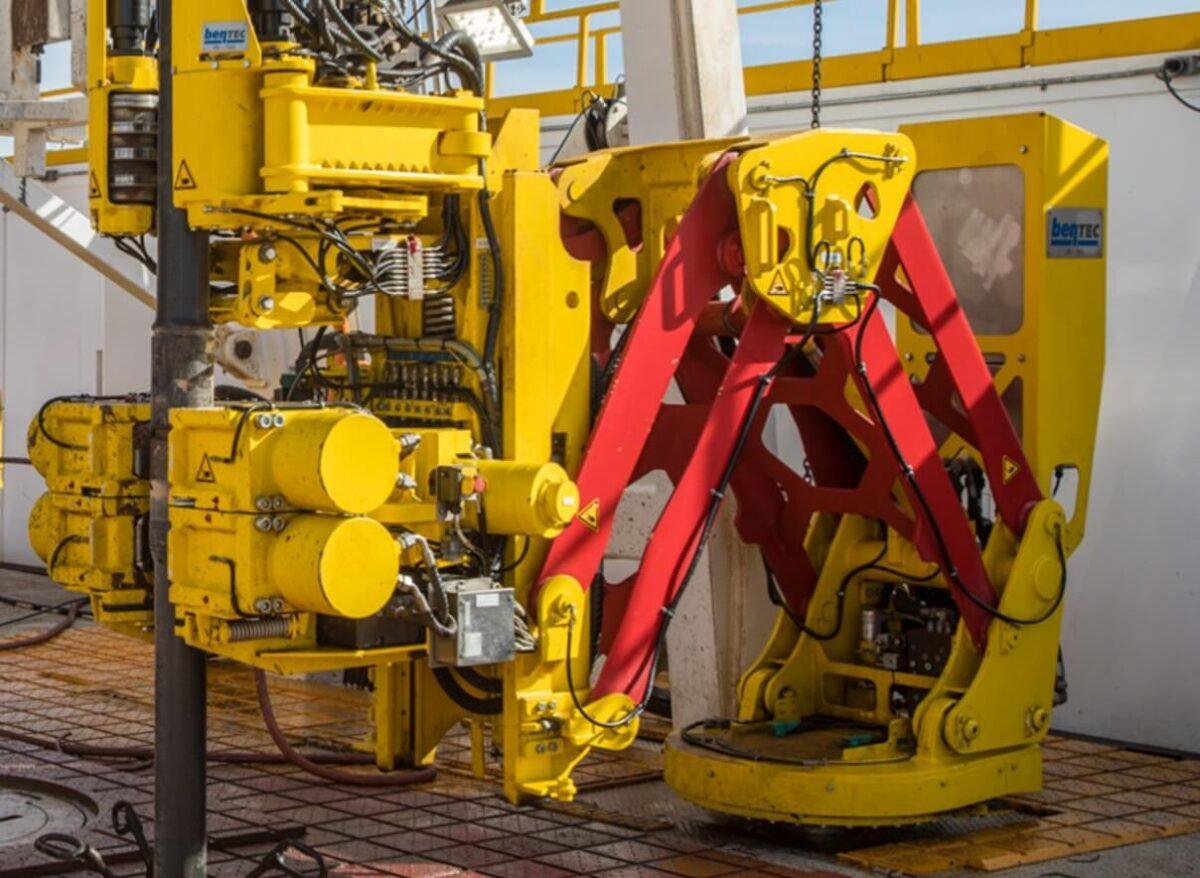

Iron Roughnecks
Built to maximise the efficiency of pipe handling operations.
BENTEC Iron Roughnecks provide a safe and versatile alternative to conventional pipe connection techniques for make-up / break-out operations. Cycle time down to 37 seconds.
Product Model Tool Joint Connection OD Range Max. Breakout Torque Max. Makeup Torque IR-80 2-3/8“ - 8-1/2“ 80.000 ft-lbs 60.000 ft-lbs IR-100 3-1/8“ - 9-3/4“ 120.000 ft-lbs 100.000 ft-lbs IR-100-Remote 3-1/8“ - 9-3/4“ 100.000 ft-lbs 100.000 ft-lbs IR-120 3-1/8“ - 9-3/4“ 120.000 ft-lbs 100.000 ft-lbs IR-120-Remote 3-1/8“ - 9-3/4“ 120.000 ft-lbs 100.000 ft-lbs -

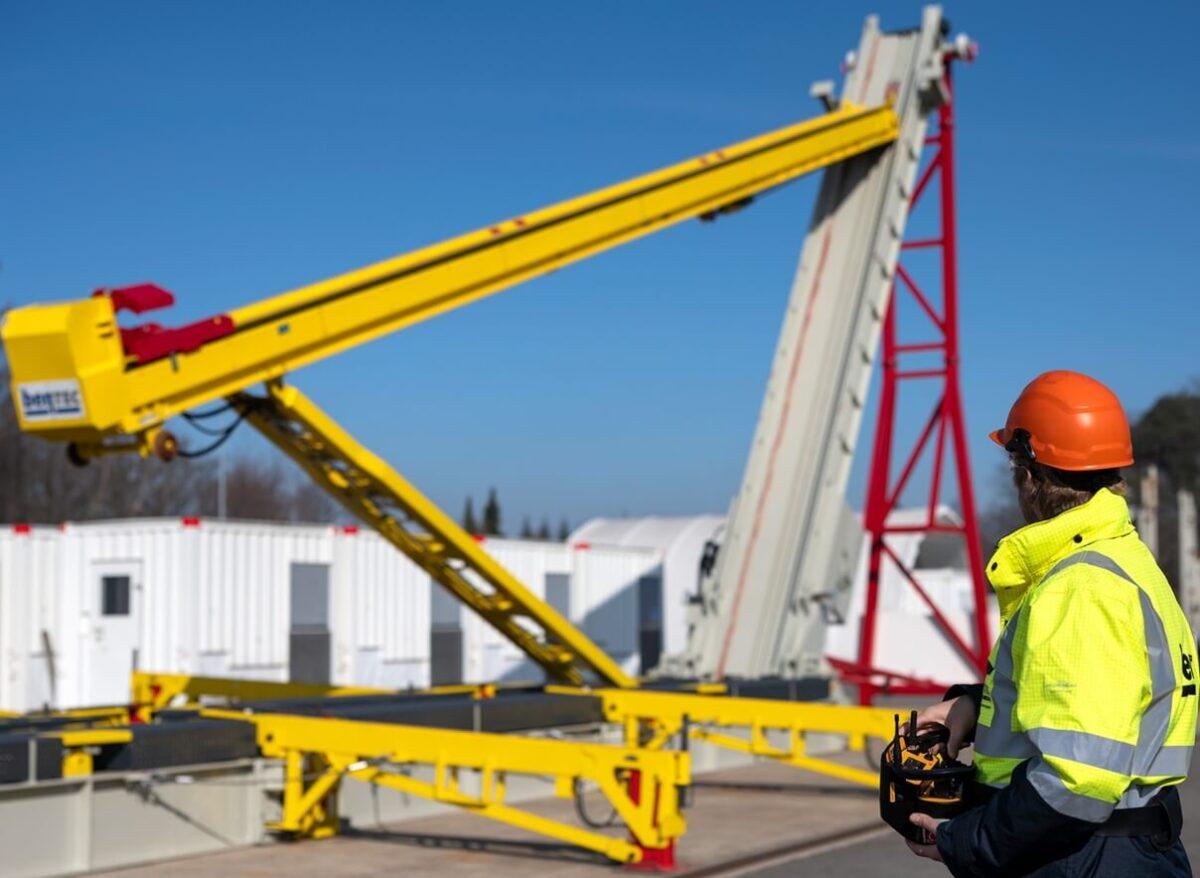

Hydraulic Catwalks
Reduce manual pipe handling with fast cycle times and increased safety.
BENTEC Catwalk systems eliminate manual work for pie handling whilst increasing safety for the drill crew. Available in mechanised and hydraulic models.
Product Model Substructure Reach Max. Tubular Length Max. Tubular Weight Winch Type 22 ft - 42 ft 48 ft 10.000 lbs Cylinder Type 16 ft - 46 ft 64ft 16.000 lbs -

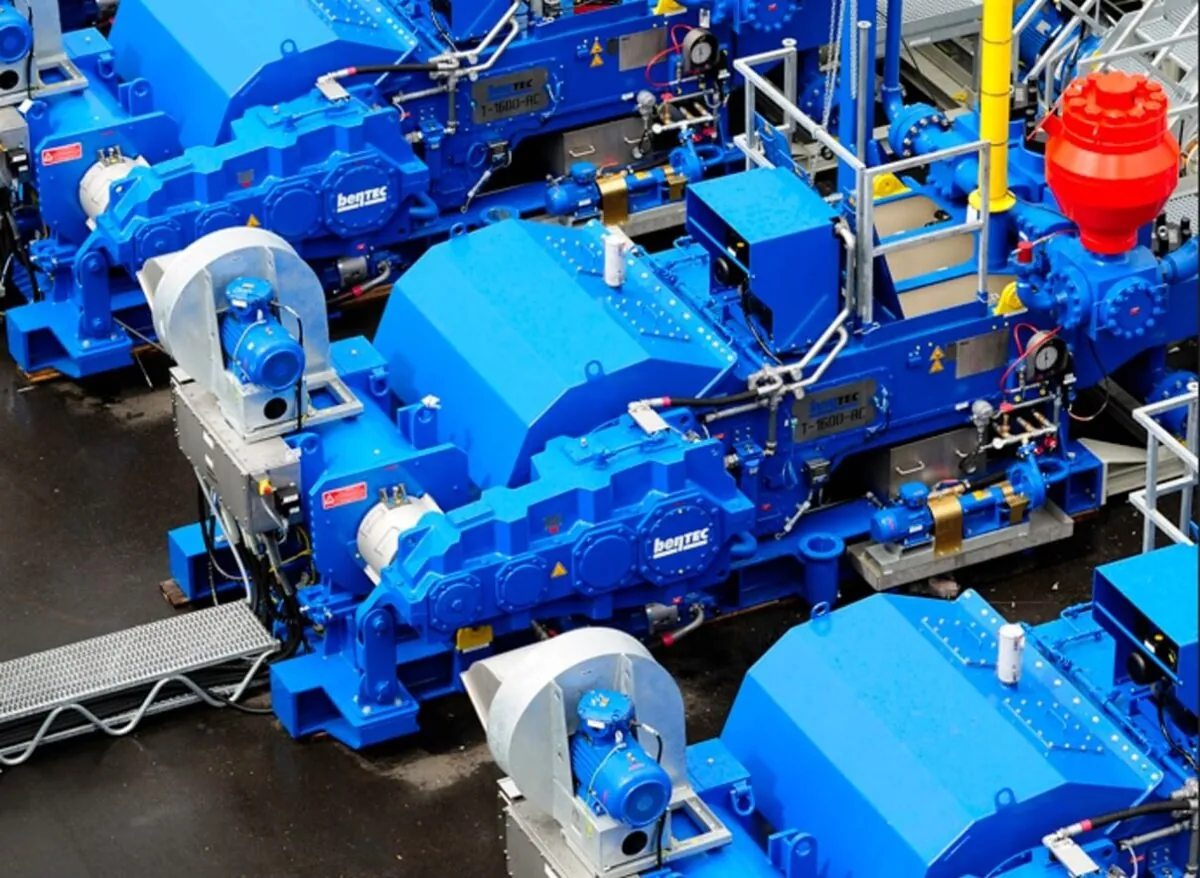

Mud Pumps
Enhanced reliability and reduced maintenance.
BENTEC mud pumps are designed with direct-driven gearbox and a state-of-the-art pump housing. BENTEC are light weight with small footprints – suitable for any drilling rig arrangement.
Product Model Horsepower Rating Max. Liner Size Max. Pressure Rating MP-T-1000-AC-R 1.000 hp 7.500 PSI MP-T-1300-AC-R 1.300 hp 7.500 PSI MP-T-1600-AC-R 1.600 hp 7.500 PSI MP-T-2200-AC 2.200 hp 7.500 PSI -

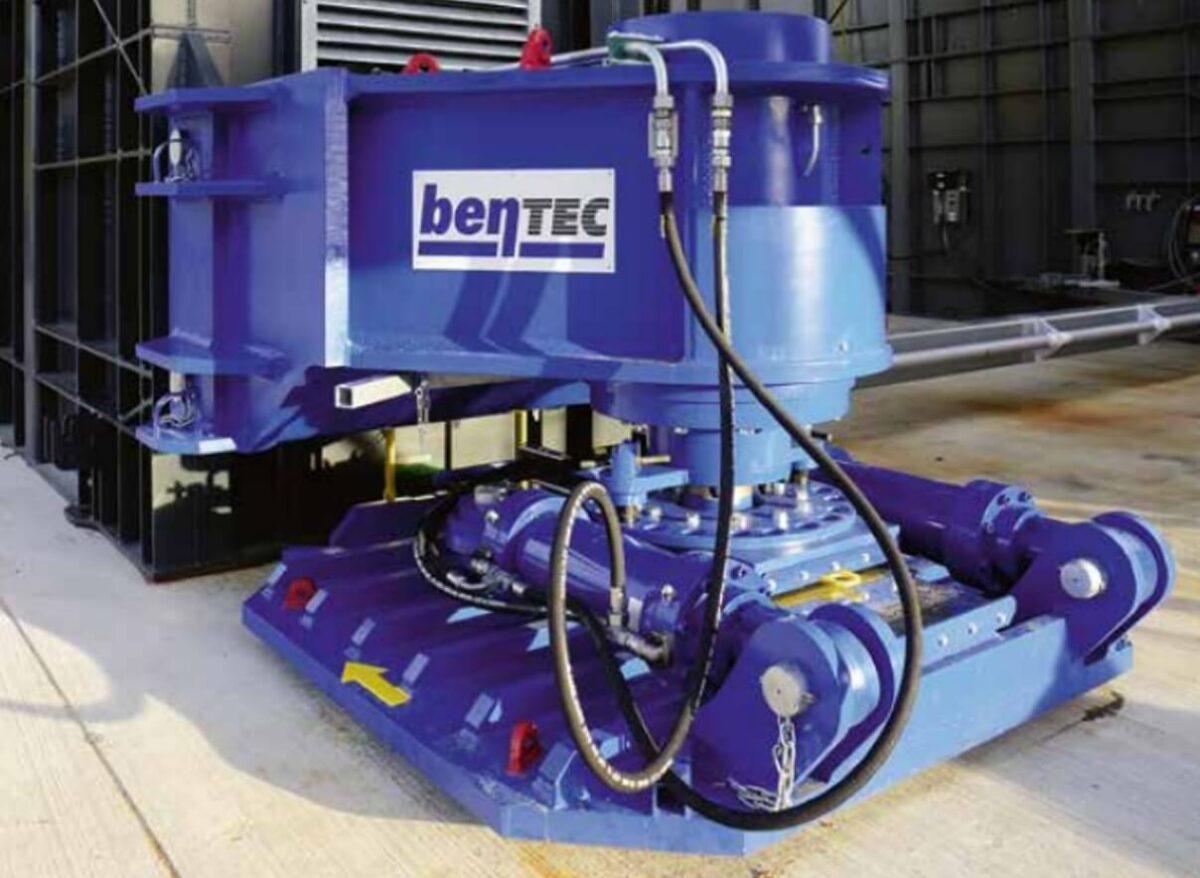

Rig Walking System
Reducing rig move time from well to well.
Bentec Rig Walking Systems provides a solution for reducing the time taken for a rig move on multi-well rig-sites. Moving the complete rig to the next well also requires fewer cranes and less manpower.
-

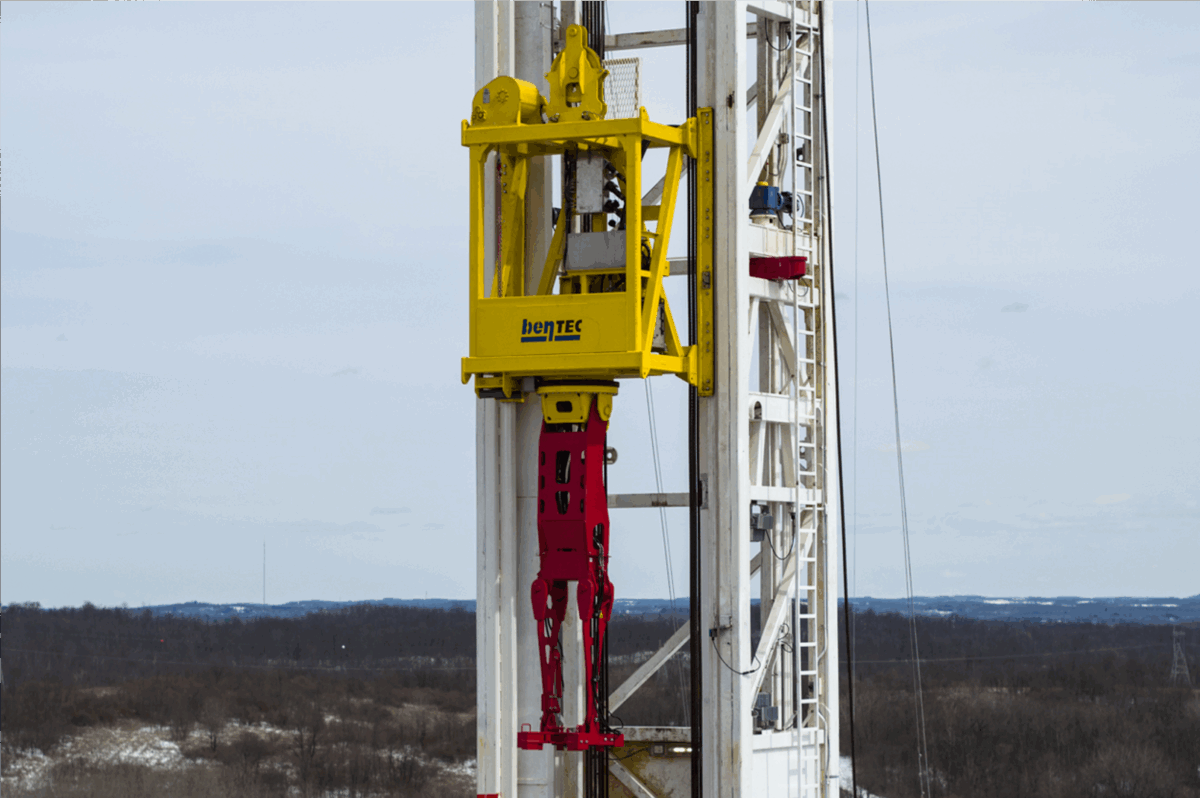

Offline Stand Builder
Product Model Min. Handling DIA Max. Handling DIA Max. Lifting Capacity OSB-15700 4-1/2“ 9-5/8 15.700 lbs -

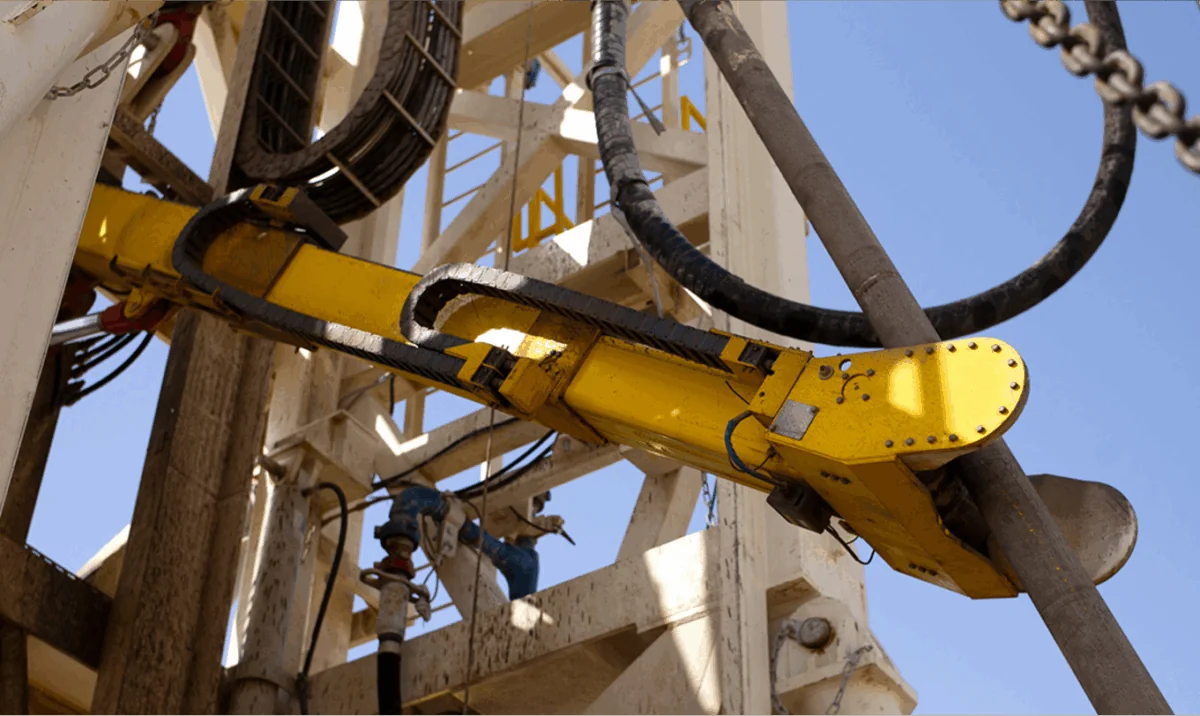

Pipe Guide Arm
Product Model Min. Handling DIA Max. Handling DIA Max. Lifting Capacity PGA-20-3000 4-1/2“ 9-5/8 15.700 lbs -

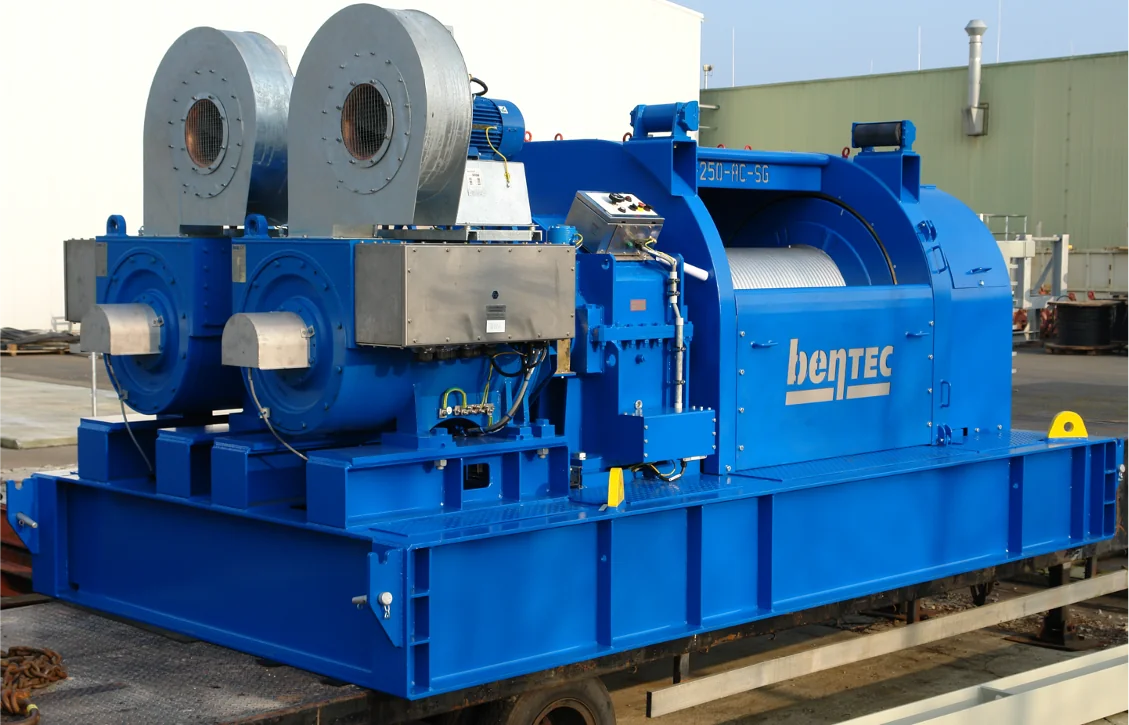

Gear Driven Drawworks
Product Model Horsepower Rating Gear Drive Type DW-E-200-AC-SG 1.000 hp Single Gear AC DW-E-250-AC-SG 1.250 hp Single Gear AC DW-E-350-AC-SG 1.500 hp Single Gear AC DW-E-450-AC-SG 2.000 hp Single Gear AC DW-E-1250-AC 1.250 hp Single Gear AC DW-E-1500-AC 1.500 hp Dual Gear AC DW-E-2000-AC 2.000 hp Dual Gear AC DW-E-3000-AC 3.000 hp Dual Gear AC DW-E-1250-DC 1.250 hp Dual Gear AC DW-E-1500-DC 1.500 hp Dual Gear AC DW-E-2000-DC 2.000 hp Dual Gear AC -

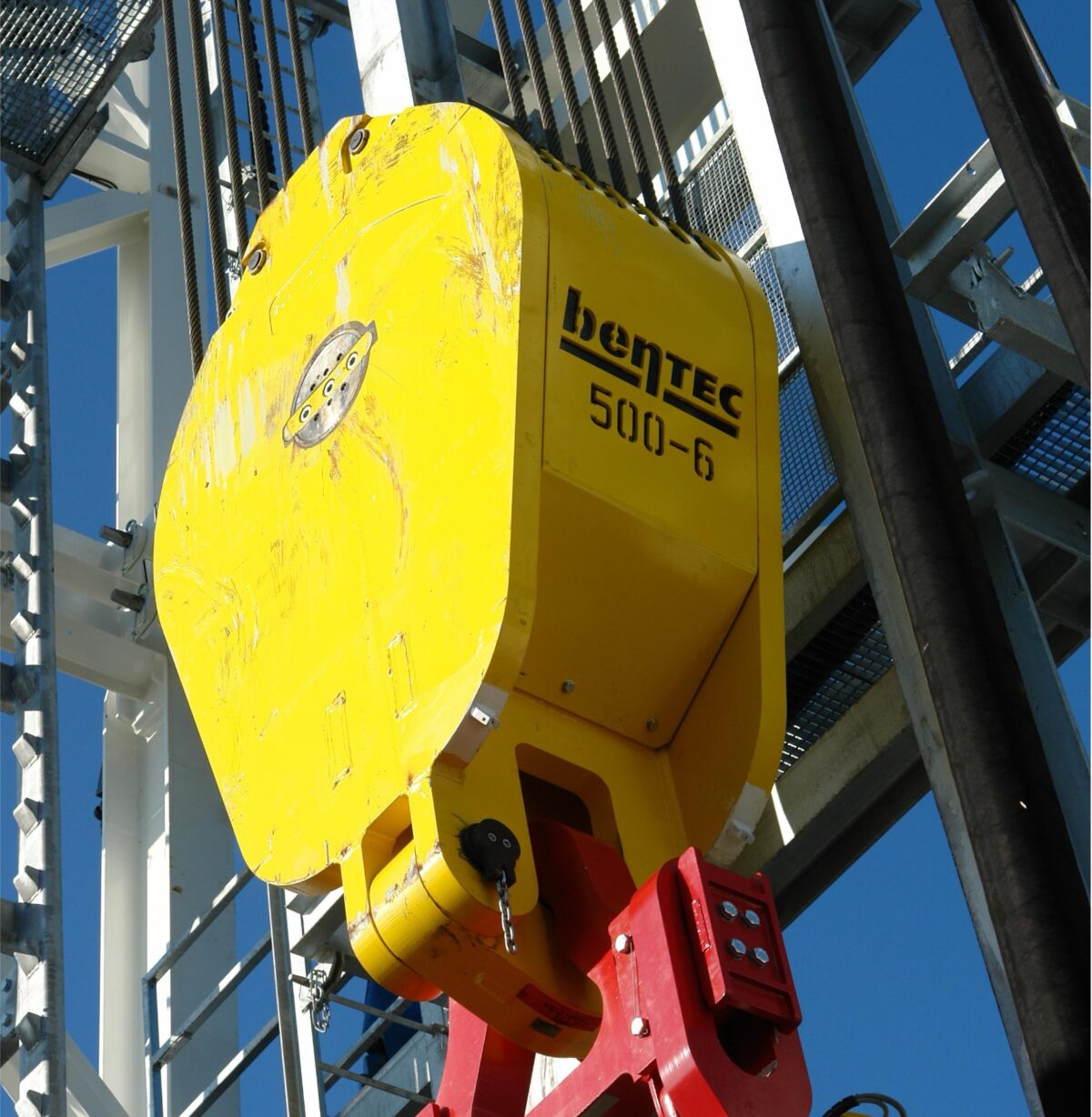

Traveling Blocks
Product Model Load Rating Wireline Sheaves TB-250-5-36 250 ton 1-1/8“ / 1-1/4“ 5 TB-275-5-42 275 ton 1-1/8“ / 1-1/4“ 5 TB-350-5-42 350 ton 1-1/8“ / 1-1/4“ 5 TB-400-6-50 400 ton 1-1/8“ / 1-1/4“ 6 TB-400-6-50 400 ton 1-1/4“ / 1-3/8“ 6 TB-500-5-62 500 ton 1-1/4“ / 1-3/8“ 5 TB-500-6-52 500 ton 1-3/8“ / 1-1/2“ 6 TB-500-6-60 500 ton 1-3/8“ / 1-1/2“ 6 TB-500-7-60 500 ton 1-3/8“ / 1-1/2“ 7 TB-650-6-60 650 ton 1-1/2“ / 1-5/8“ 6 TB-650-7-60 650 ton 1-1/2“ / 1-5/8“ 7 TB-750-7-60 750 ton 1-1/2“ / 1-5/8“ 7 -

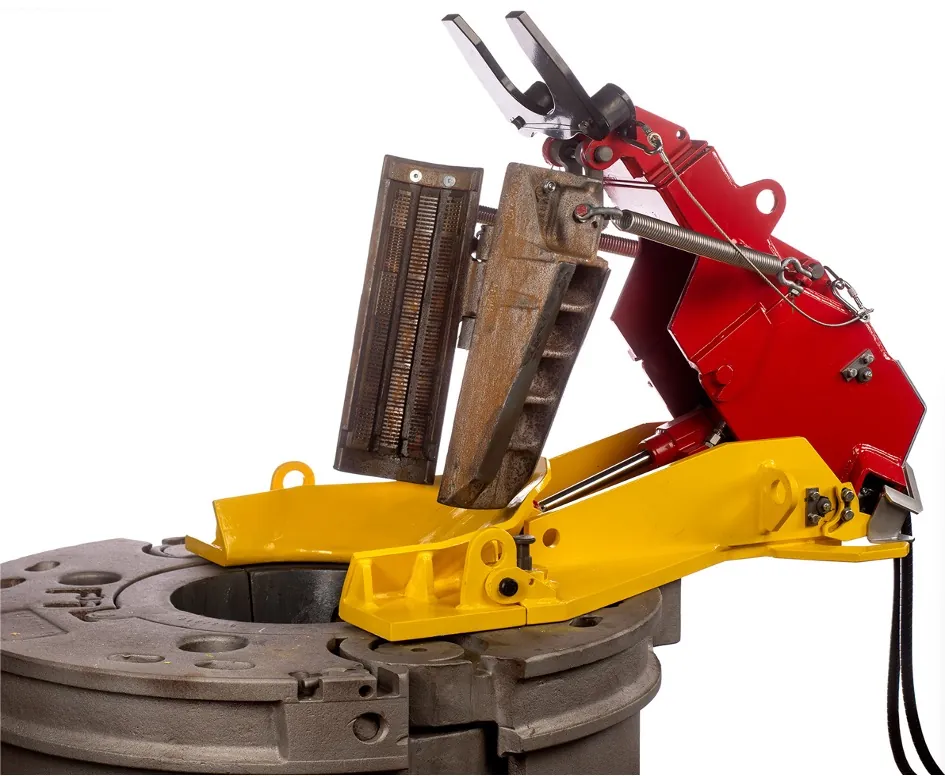

Slip Lifters
Product Model Min. Handling DIA Max. Handling DIA Max. Lifting Capacity SL-1500-FN 2-3/8“ 7-5/8 1.500 lbs -
Mud Buckets
Product Model Min. Handling DIA Max. Handling DIA Type MB-ST 2-3/8“ 9-5/8“ Manual MB-ST 2-3/8“ 9-5/8“ Remote MB-SA 2-3/8“ 9-5/8“ Manual MB-SA 2-3/8“ 9-5/8“ Remote -
Hydraulic Catheads
Product Model Max. Line Pull Max. Handling DIA HC-31,5 4-1/2“ 9-5/8 -

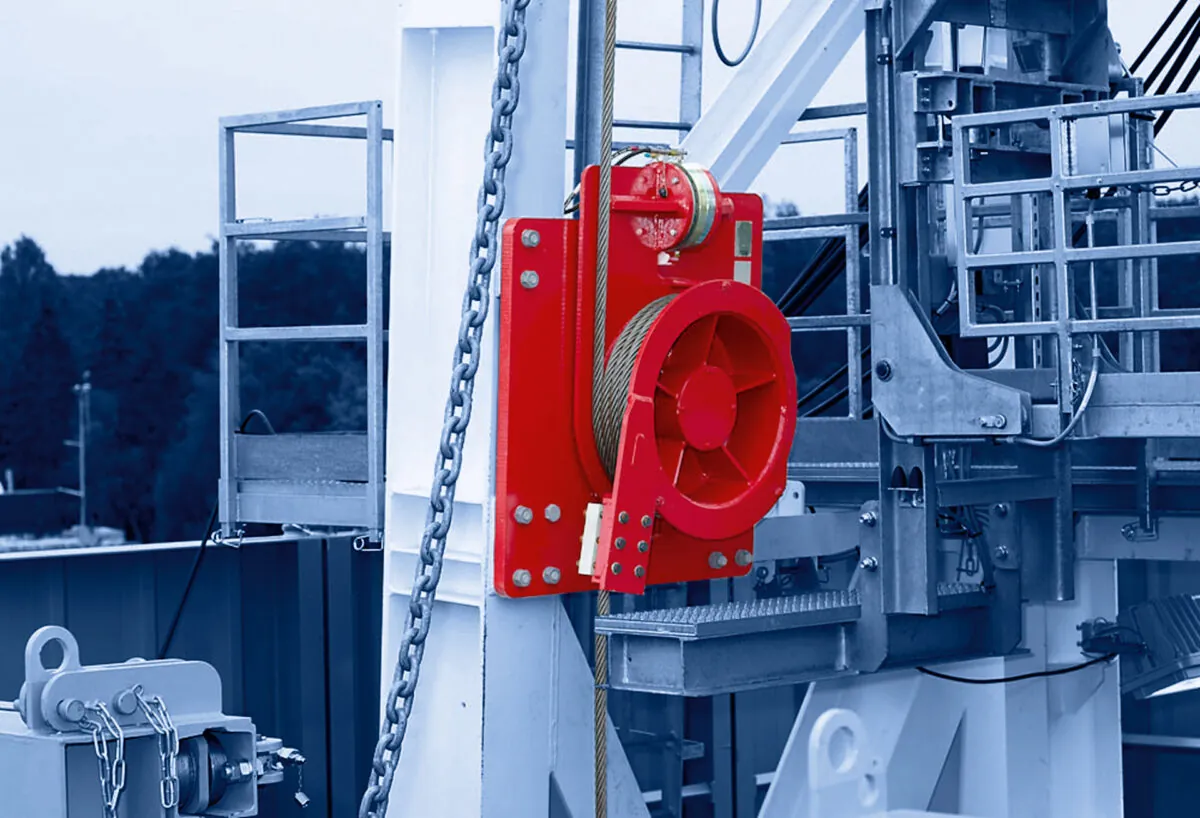

Deadline Anchors
Product Model Max. Line Pull Wireline DIA Load cell DA-100-W-1-1/2 100.000 lbf 1-1/2“ Compression DA-100-W-1-3/8 100.000 lbf 1-3/8“ Compression DA-100-W-1-1/4 100.000 lbf 1-1/4“ Compression DA-60-W-1-1/4 60.000 lbf 1-1/4“ Compression DA-60-W-1-1/8 60.000 lbf 1-1/8“ Compression -

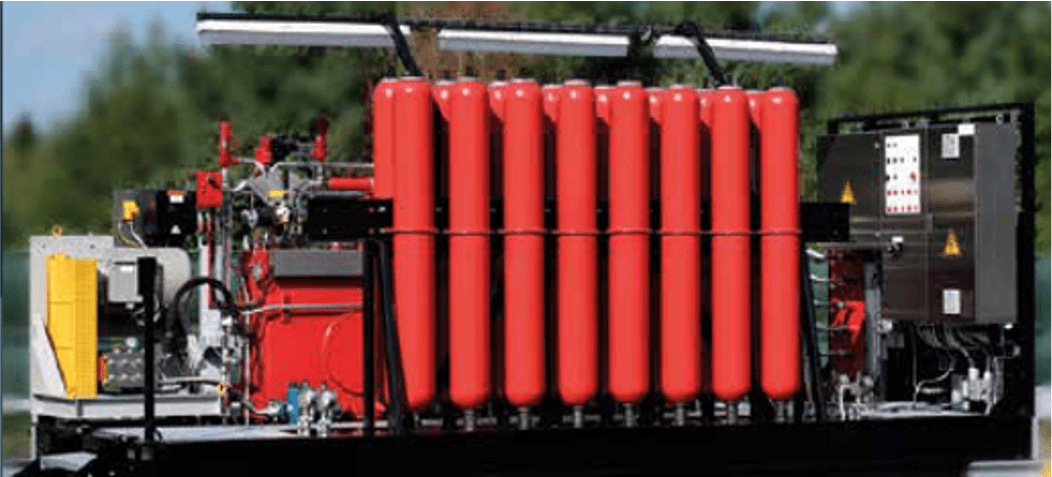

BOP Closing Units
Product Model Rig Size Configuration BOP-CU-1000 1.000 hp BOP Specific BOP-CU-1500 1.500 hp BOP Specific BOP-CU-2000 2.000 hp BOP Specific BOP-CU-3000 3.000 hp BOP Specific
Electrical Drilling Equipment
-

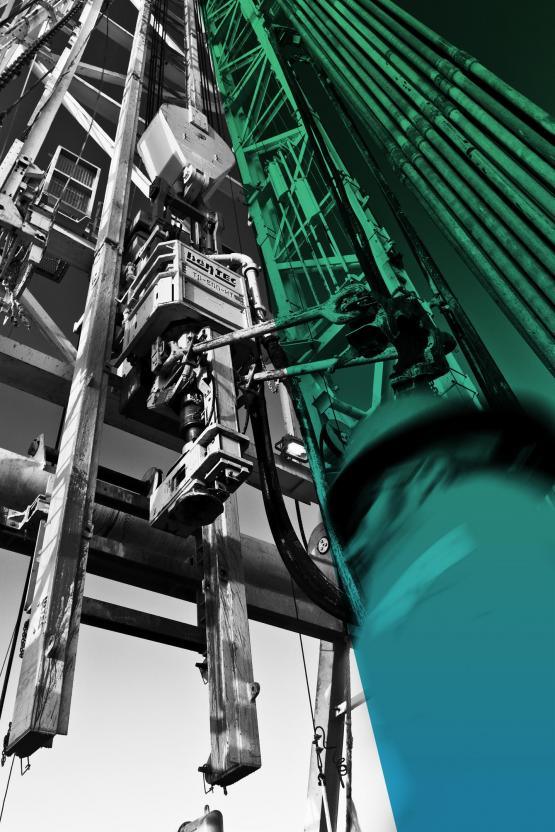

Anti Collision System
Removing equipment collisions and safety hazards
Interlocking of all travelling and drillfloor equipment to prevent collisions. Increases safety on drilling rigs and optimizes equipment motions. Enables up to 20% faster tripping performance. -

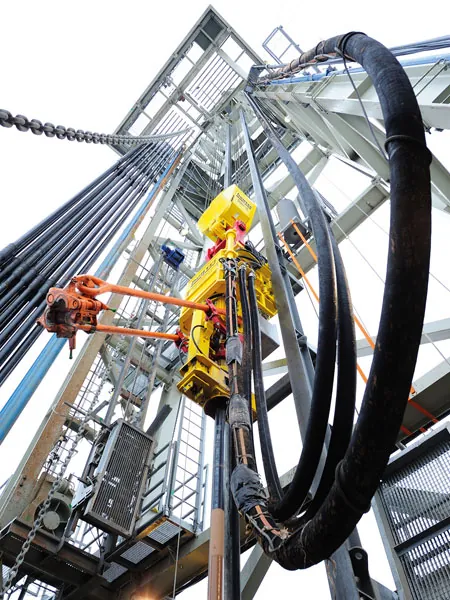

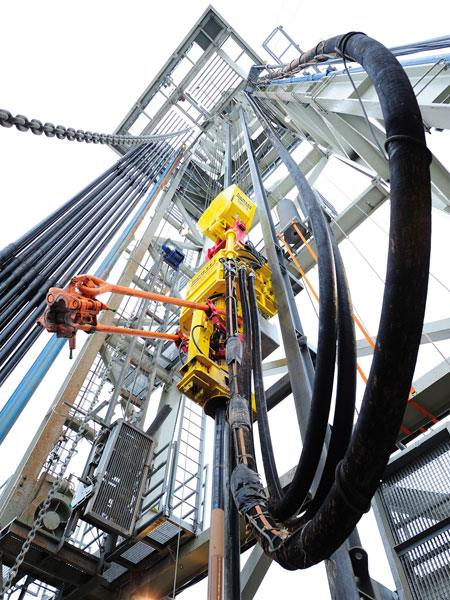

Service Loops
Top drive service loops provide reliable power and control supply for all common top drives, and operate reliably in extreme conditions (-45°C to +55°C): ensuring low NPT. Interchangeable with OEM service loops.
-

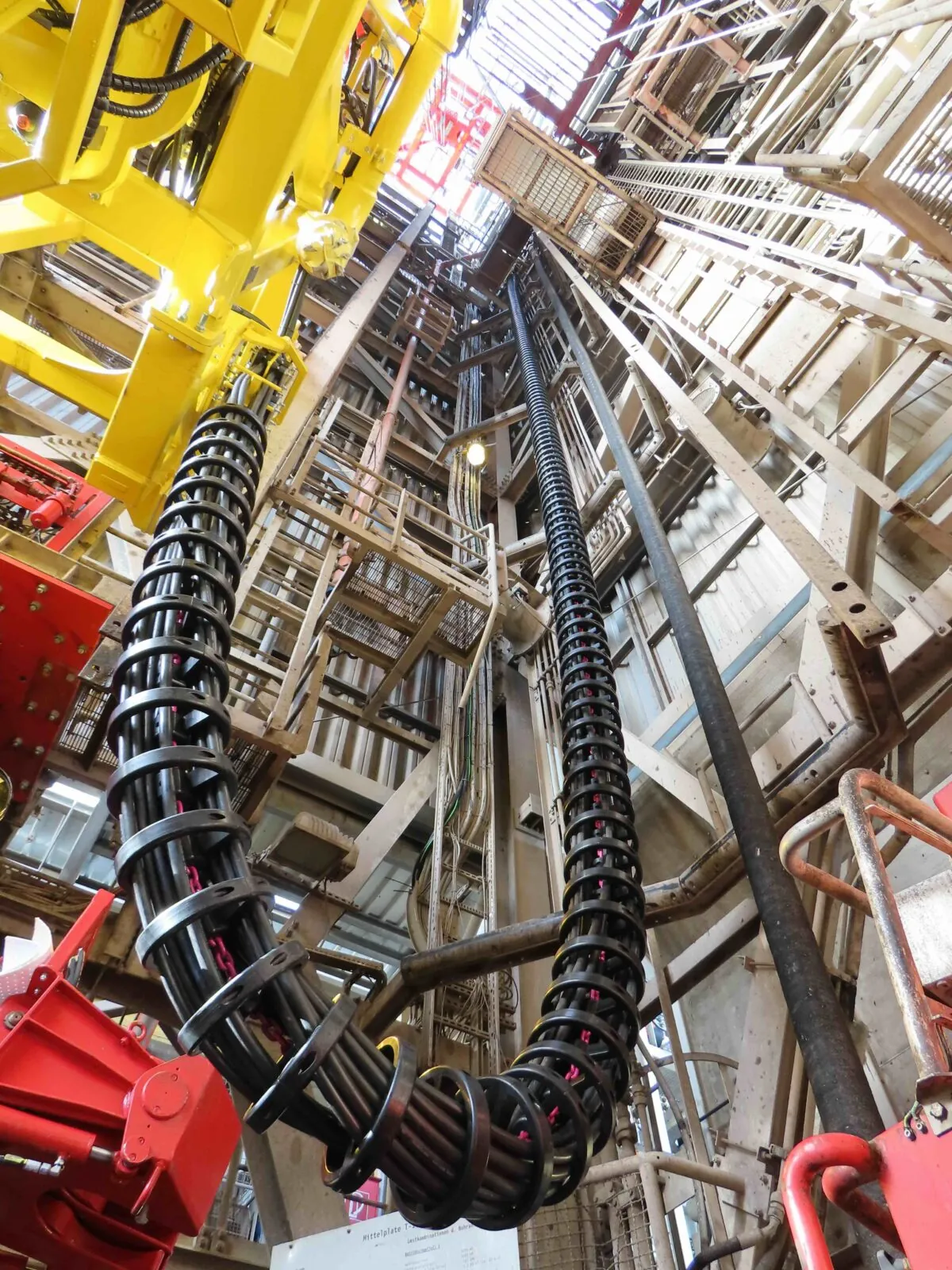

Cable Chain Systems
BENTEC’s cable chain reduces NPT and operational costs. It’s a cost-effective alternative to service loops because you can easily repair or replace components.
-

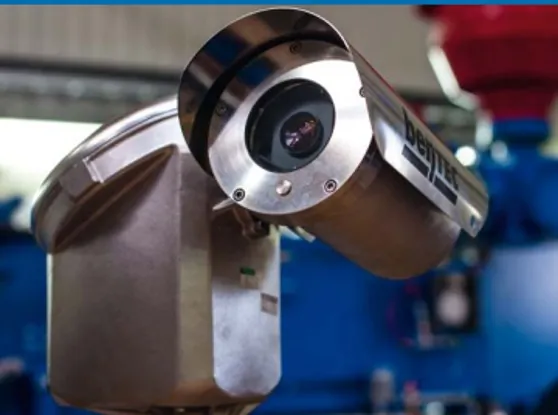

Camera Systems
Monitor critical areas. Fixed Zoom Cameras, Pan/Tilt Zoom Cameras, Dome Cameras. System integrated recording, available for all types of hazardous areas. Video Stream export and recording.
Rig Controls
-

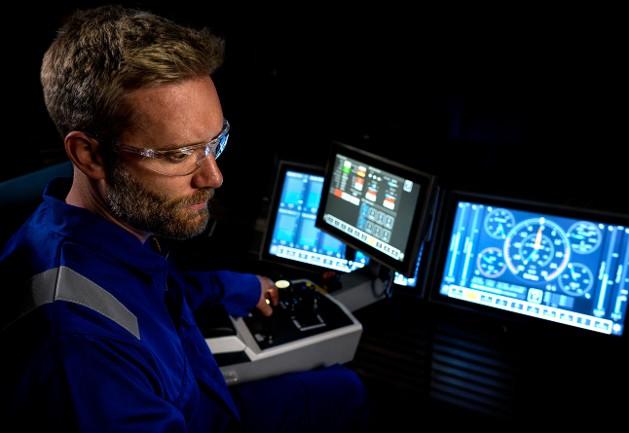

SYNAPSE™ Rig Control System
Rig Automation. Open achitecture and intuitive rig operating system.
Built-in Auto-Sequencer improves automation levels. Improves supervisory capabilities of the driller enabling better data-driven decisions.
-
SYNAPSE™ DER
Rig data in one Ecosystem
High sampling rates and customizable data traces enabling fast data-driven decisions.
-

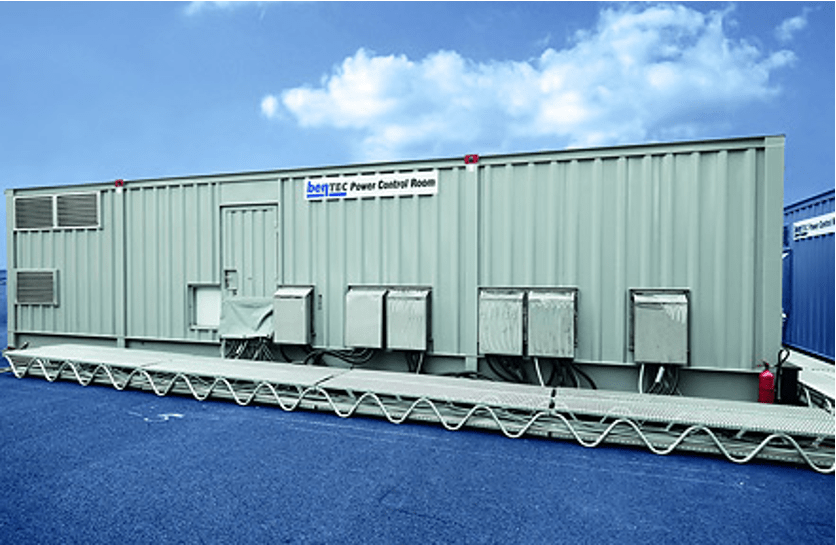

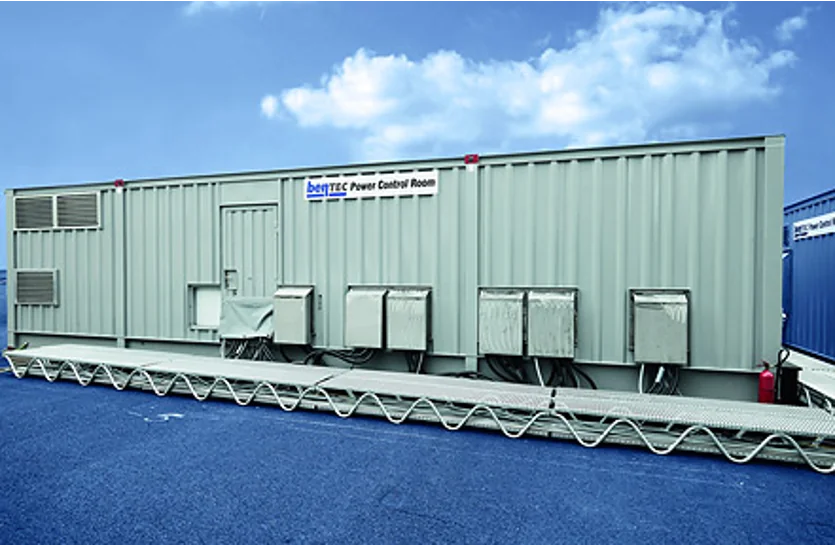

Power Control Room
Containerized AC or DC Power Controls
Suitable for rigs from 1.000hp – 3.000hp. BENTEC Power Control Room contains all of the required components such as a main switchboard, generator control, motor control center, small power distributions, and transformers to power up all of the electrical consumers on the rig. -

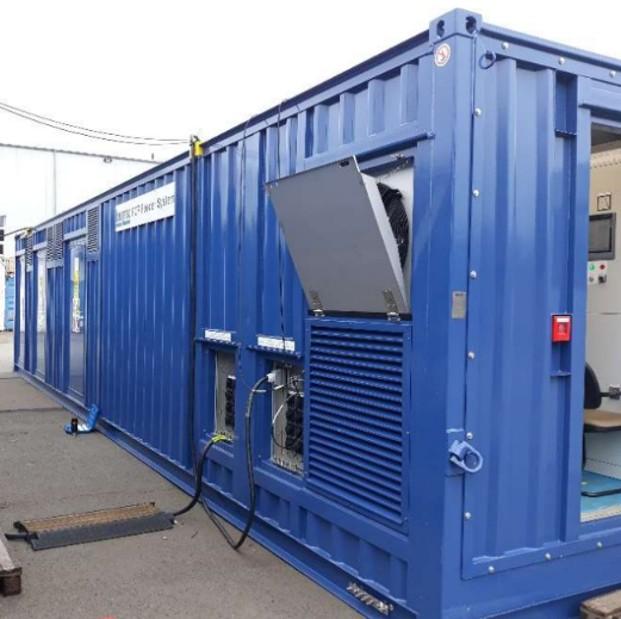

VFD Container
Containerized VFD Houses for land and offshore rigs
Suitable for rigs from 1.000hp – 3.000hp @ 600 / 690V & 50 / 60 Hz.
Integrated Bentec and versatile benCON™ frequency converters.
Integrated Bentec airCOOL offering a wide range of cooling concepts.
Tailor made Container design meeting all technical and operational needs.
-

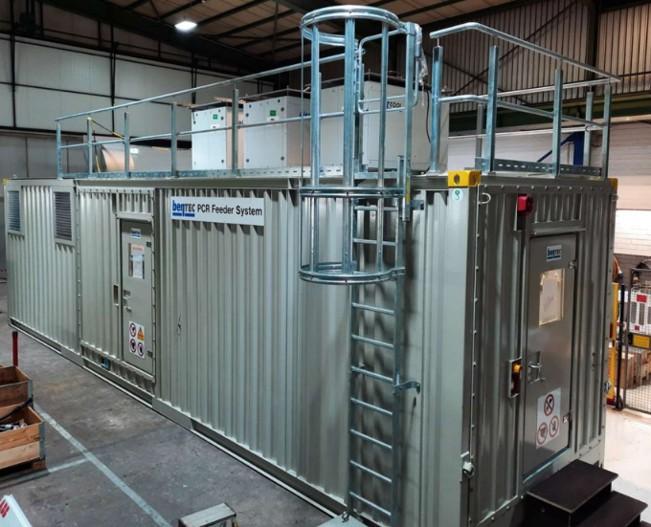

Grid Converter
Enabling up to 90% reduction of direct rig carbon emissions.
Suitable for rigs from 1.000hp – 3.000hp @ 600 / 690V & 50 / 60 Hz.
Enabing to run rigs from the grid (100% or hybrid). Built-in frequency conversion to enable 60Hz rigs running on 50Hz grids and vice versa by Bentec benCON™ converter series. Integrated airCOOL Air Conditions.
-

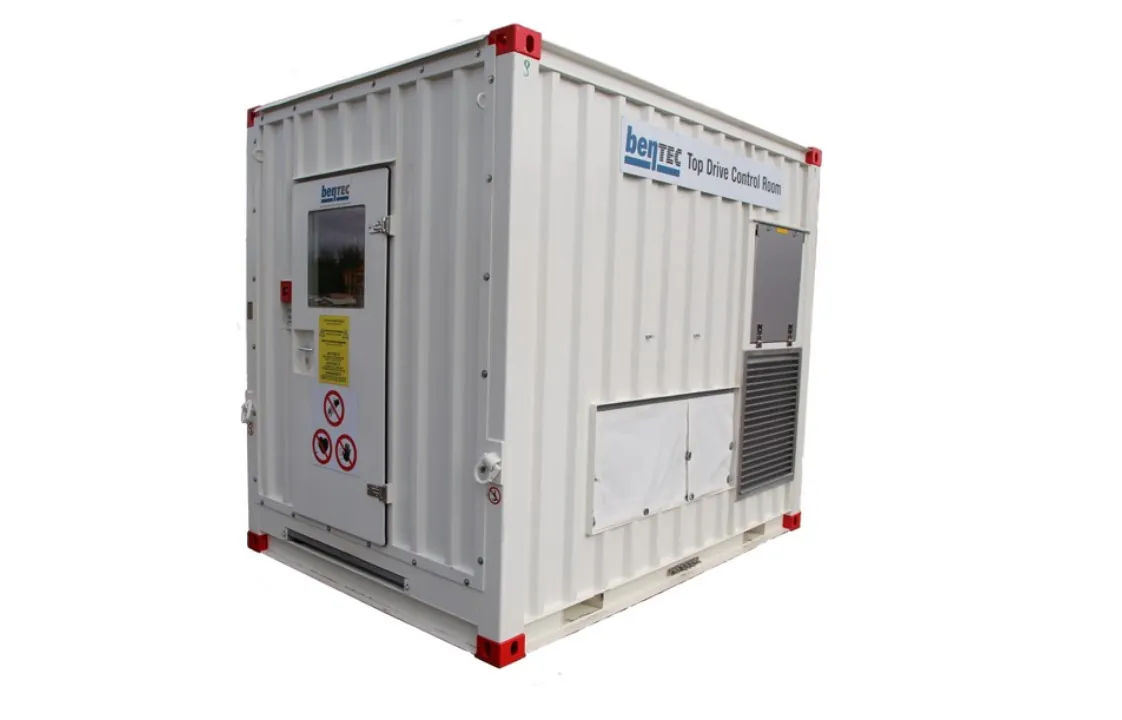

Top Drive Container
Self contained Top Drive VFD House
Suitable for all AC Top Drives up to 1.715 hp. Compatible for Bentec Top Drives or any other Top Drive Brand for on & offshore installation.
Integrated Bentec benCON™ frequency converters.
Integrated Bentec airCOOL Air Conditions.
-

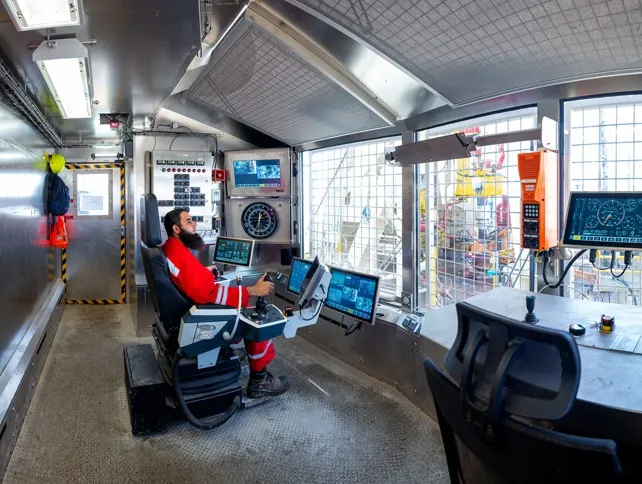

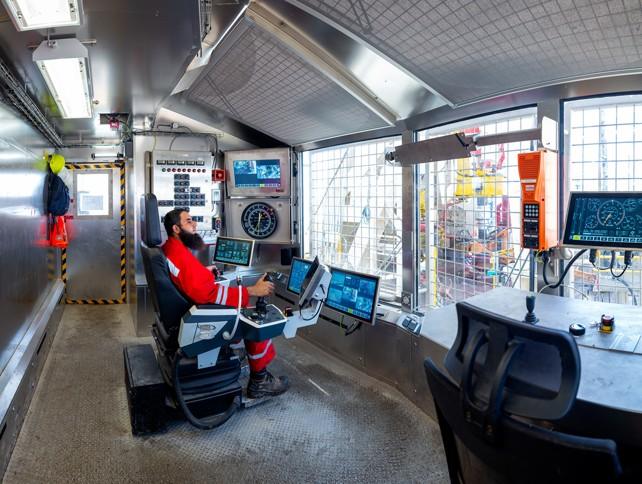

Drillers Cabins
Tailor Made Drillers Cabins
Zone Rated Drillers Cabins (Zone 1 or Zone 2). Usable for on & Offshore. Single Driller and 2-Persons Cabins. Stainless Steel Housing with Plug & Play Connections
-

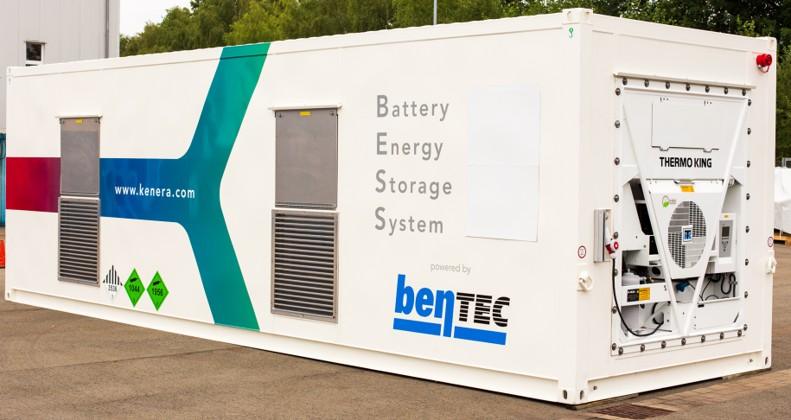

Battery Energy Storage System (BESS)
Hybrid drilling – up to 20% less Carbon emissions
Enabling reliance on drilling rig generators to run on higher loads. BESS cover peaks in energy demand . Smooth Battery Temperature control regulated by Bentec airCOOL. Battery charging and sicharging through benCON™ Converter Series. Hollistic Integration into Rig‘s power management system.
Proven expertise
Field-tested reliability
BENTEC delivers measurable improvements in the areas that matter to your operations.
Market-leading drilling equipment with best-in-field performance.
30% more continuous torque capacity with BENTEC Top Drives.
Increased drilling performance through our integrated drilling software solutions. Faster ROP = Earlier Well Delivery.
Reliability across the asset lifecycle: significantly reduced rig downtime and maintenance costs.
